mom_grid Module Reference

Detailed Description

Provides the ocean grid type.

Grid metrics and their inverses are labelled according to their staggered location on a Arakawa C (or B) grid.

  • Metrics centered on h- or T-points are labelled T, e.g. dxT is the distance across the cell in the x-direction.
  • Metrics centered on u-points are labelled Cu (C-grid u location). e.g. dyCu is the y-distance between two corners of a T-cell.
  • Metrics centered on v-points are labelled Cv (C-grid v location). e.g. dyCv is the y-distance between two -points.
  • Metrics centered on q-points are labelled Bu (B-grid u,v location). e.g. areaBu is the area centered on a q-point.

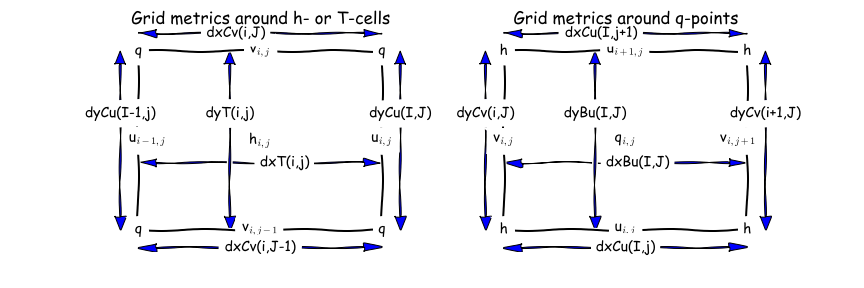

The labelling of distances (grid metrics) at various staggered location on an T-cell and around a q-point.

Areas centered at T-, u-, v- and q- points are areaT, areaCu, areaCv and areaBu respectively.

The reciprocal of metrics are pre-calculated and also stored in the ocean_grid_type with a I prepended to the name. For example, 1./areaT is called IareaT, and 1./dyCv is IdyCv.

Geographic latitude and longitude (or model coordinates if not on a sphere) are stored in geoLatT, geoLonT for T-points. u-, v- and q- point coordinates are follow same pattern of replacing T with Cu, Cv and Bu respectively.

Each location also has a 2D mask indicating whether the entire column is land or ocean. mask2dT is 1 if the column is wet or 0 if the T-cell is land. mask2dCu is 1 if both neighboring column are ocean, and 0 if either is land.

Data Types

type  ocean_grid_type
 Ocean grid type. See mom_grid for details. More...


Functions/Subroutines

subroutine, public mom_grid_init (G, param_file, HI, global_indexing, bathymetry_at_vel)
 MOM_grid_init initializes the ocean grid array sizes and grid memory. More...

subroutine, public set_derived_metrics (G)
 set_derived_metrics calculates metric terms that are derived from other metrics. More...

real function adcroft_reciprocal (val)
 Adcroft_reciprocal(x) = 1/x for |x|>0 or 0 for x=0. More...

logical function, public ispointincell (G, i, j, x, y)
 Returns true if the coordinates (x,y) are within the h-cell (i,j) More...

subroutine, public set_first_direction (G, y_first)

subroutine allocate_metrics (G)
 Allocate memory used by the ocean_grid_type and related structures. More...

subroutine, public mom_grid_end (G)
 Release memory used by the ocean_grid_type and related structures. More...


Function/Subroutine Documentation

◆ adcroft_reciprocal()

real function mom_grid::adcroft_reciprocal ( real, intent(in)  val)
private

Adcroft_reciprocal(x) = 1/x for |x|>0 or 0 for x=0.

Parameters
[in]valThe value being inverted.
Returns
The Adcroft reciprocal of val.

Definition at line 398 of file MOM_grid.F90.

Referenced by set_derived_metrics().

398  real, intent(in) :: val !< The value being inverted.
399  real :: i_val !< The Adcroft reciprocal of val.
400
401  i_val = 0.0 ; if (val /= 0.0) i_val = 1.0/val
Here is the caller graph for this function:

◆ allocate_metrics()

subroutine mom_grid::allocate_metrics ( type(ocean_grid_type), intent(inout)  G)
private

Allocate memory used by the ocean_grid_type and related structures.

Parameters
[in,out]gThe horizontal grid type

Definition at line 448 of file MOM_grid.F90.

Referenced by mom_grid_init().

448  type(ocean_grid_type), intent(inout) :: g !< The horizontal grid type
449  integer :: isd, ied, jsd, jed, isdb, iedb, jsdb, jedb, isg, ieg, jsg, jeg
450
451  ! This subroutine allocates the lateral elements of the ocean_grid_type that
452  ! are always used and zeros them out.
453
454  isd = g%isd ; ied = g%ied ; jsd = g%jsd ; jed = g%jed
455  isdb = g%IsdB ; iedb = g%IedB ; jsdb = g%JsdB ; jedb = g%JedB
456  isg = g%isg ; ieg = g%ieg ; jsg = g%jsg ; jeg = g%jeg
457
458  alloc_(g%dxT(isd:ied,jsd:jed)) ; g%dxT(:,:) = 0.0
459  alloc_(g%dxCu(isdb:iedb,jsd:jed)) ; g%dxCu(:,:) = 0.0
460  alloc_(g%dxCv(isd:ied,jsdb:jedb)) ; g%dxCv(:,:) = 0.0
461  alloc_(g%dxBu(isdb:iedb,jsdb:jedb)) ; g%dxBu(:,:) = 0.0
462  alloc_(g%IdxT(isd:ied,jsd:jed)) ; g%IdxT(:,:) = 0.0
463  alloc_(g%IdxCu(isdb:iedb,jsd:jed)) ; g%IdxCu(:,:) = 0.0
464  alloc_(g%IdxCv(isd:ied,jsdb:jedb)) ; g%IdxCv(:,:) = 0.0
465  alloc_(g%IdxBu(isdb:iedb,jsdb:jedb)) ; g%IdxBu(:,:) = 0.0
466
467  alloc_(g%dyT(isd:ied,jsd:jed)) ; g%dyT(:,:) = 0.0
468  alloc_(g%dyCu(isdb:iedb,jsd:jed)) ; g%dyCu(:,:) = 0.0
469  alloc_(g%dyCv(isd:ied,jsdb:jedb)) ; g%dyCv(:,:) = 0.0
470  alloc_(g%dyBu(isdb:iedb,jsdb:jedb)) ; g%dyBu(:,:) = 0.0
471  alloc_(g%IdyT(isd:ied,jsd:jed)) ; g%IdyT(:,:) = 0.0
472  alloc_(g%IdyCu(isdb:iedb,jsd:jed)) ; g%IdyCu(:,:) = 0.0
473  alloc_(g%IdyCv(isd:ied,jsdb:jedb)) ; g%IdyCv(:,:) = 0.0
474  alloc_(g%IdyBu(isdb:iedb,jsdb:jedb)) ; g%IdyBu(:,:) = 0.0
475
476  alloc_(g%areaT(isd:ied,jsd:jed)) ; g%areaT(:,:) = 0.0
477  alloc_(g%IareaT(isd:ied,jsd:jed)) ; g%IareaT(:,:) = 0.0
478  alloc_(g%areaBu(isdb:iedb,jsdb:jedb)) ; g%areaBu(:,:) = 0.0
479  alloc_(g%IareaBu(isdb:iedb,jsdb:jedb)) ; g%IareaBu(:,:) = 0.0
480
481  alloc_(g%mask2dT(isd:ied,jsd:jed)) ; g%mask2dT(:,:) = 0.0
482  alloc_(g%mask2dCu(isdb:iedb,jsd:jed)) ; g%mask2dCu(:,:) = 0.0
483  alloc_(g%mask2dCv(isd:ied,jsdb:jedb)) ; g%mask2dCv(:,:) = 0.0
484  alloc_(g%mask2dBu(isdb:iedb,jsdb:jedb)) ; g%mask2dBu(:,:) = 0.0
485  alloc_(g%geoLatT(isd:ied,jsd:jed)) ; g%geoLatT(:,:) = 0.0
486  alloc_(g%geoLatCu(isdb:iedb,jsd:jed)) ; g%geoLatCu(:,:) = 0.0
487  alloc_(g%geoLatCv(isd:ied,jsdb:jedb)) ; g%geoLatCv(:,:) = 0.0
488  alloc_(g%geoLatBu(isdb:iedb,jsdb:jedb)) ; g%geoLatBu(:,:) = 0.0
489  alloc_(g%geoLonT(isd:ied,jsd:jed)) ; g%geoLonT(:,:) = 0.0
490  alloc_(g%geoLonCu(isdb:iedb,jsd:jed)) ; g%geoLonCu(:,:) = 0.0
491  alloc_(g%geoLonCv(isd:ied,jsdb:jedb)) ; g%geoLonCv(:,:) = 0.0
492  alloc_(g%geoLonBu(isdb:iedb,jsdb:jedb)) ; g%geoLonBu(:,:) = 0.0
493
494  alloc_(g%dx_Cv(isd:ied,jsdb:jedb)) ; g%dx_Cv(:,:) = 0.0
495  alloc_(g%dy_Cu(isdb:iedb,jsd:jed)) ; g%dy_Cu(:,:) = 0.0
496  alloc_(g%dx_Cv_obc(isd:ied,jsdb:jedb)) ; g%dx_Cv_obc(:,:) = 0.0
497  alloc_(g%dy_Cu_obc(isdb:iedb,jsd:jed)) ; g%dy_Cu_obc(:,:) = 0.0
498
499  alloc_(g%areaCu(isdb:iedb,jsd:jed)) ; g%areaCu(:,:) = 0.0
500  alloc_(g%areaCv(isd:ied,jsdb:jedb)) ; g%areaCv(:,:) = 0.0
501  alloc_(g%IareaCu(isdb:iedb,jsd:jed)) ; g%IareaCu(:,:) = 0.0
502  alloc_(g%IareaCv(isd:ied,jsdb:jedb)) ; g%IareaCv(:,:) = 0.0
503
504  alloc_(g%bathyT(isd:ied, jsd:jed)) ; g%bathyT(:,:) = 0.0
505  alloc_(g%CoriolisBu(isdb:iedb, jsdb:jedb)) ; g%CoriolisBu(:,:) = 0.0
506  alloc_(g%dF_dx(isd:ied, jsd:jed)) ; g%dF_dx(:,:) = 0.0
507  alloc_(g%dF_dy(isd:ied, jsd:jed)) ; g%dF_dy(:,:) = 0.0
508
509  alloc_(g%sin_rot(isd:ied,jsd:jed)) ; g%sin_rot(:,:) = 0.0
510  alloc_(g%cos_rot(isd:ied,jsd:jed)) ; g%cos_rot(:,:) = 1.0
511
512  allocate(g%gridLonT(isg:ieg)) ; g%gridLonT(:) = 0.0
513  allocate(g%gridLonB(g%IsgB:g%IegB)) ; g%gridLonB(:) = 0.0
514  allocate(g%gridLatT(jsg:jeg)) ; g%gridLatT(:) = 0.0
515  allocate(g%gridLatB(g%JsgB:g%JegB)) ; g%gridLatB(:) = 0.0
516
mom_grid::ocean_grid_type
Ocean grid type. See mom_grid for details.
Definition: MOM_grid.F90:19
Here is the caller graph for this function:

◆ ispointincell()

logical function, public mom_grid::ispointincell ( type(ocean_grid_type), intent(in)  G,
integer, intent(in)  i,
integer, intent(in)  j,
real, intent(in)  x,
real, intent(in)  y
)

Returns true if the coordinates (x,y) are within the h-cell (i,j)

Parameters
[in]gGrid type
[in]ii index of cell to test
[in]jj index of cell to test
[in]xx coordinate of point
[in]yy coordinate of point

Definition at line 406 of file MOM_grid.F90.

406  type(ocean_grid_type), intent(in) :: g !< Grid type
407  integer, intent(in) :: i !< i index of cell to test
408  integer, intent(in) :: j !< j index of cell to test
409  real, intent(in) :: x !< x coordinate of point
410  real, intent(in) :: y !< y coordinate of point
411  ! Local variables
412  real :: xne, xnw, xse, xsw, yne, ynw, yse, ysw
413  real :: p0, p1, p2, p3, l0, l1, l2, l3
414  ispointincell = .false.
415  xne = g%geoLonBu(i ,j ) ; yne = g%geoLatBu(i ,j )
416  xnw = g%geoLonBu(i-1,j ) ; ynw = g%geoLatBu(i-1,j )
417  xse = g%geoLonBu(i ,j-1) ; yse = g%geoLatBu(i ,j-1)
418  xsw = g%geoLonBu(i-1,j-1) ; ysw = g%geoLatBu(i-1,j-1)
419  ! This is a crude calculation that assume a geographic coordinate system
420  if (x<min(xne,xnw,xse,xsw) .or. x>max(xne,xnw,xse,xsw) .or. &
421  y<min(yne,ynw,yse,ysw) .or. y>max(yne,ynw,yse,ysw) ) then
422  return ! Avoid the more complicated calculation
423  endif
424  l0 = (x-xsw)*(yse-ysw) - (y-ysw)*(xse-xsw)
425  l1 = (x-xse)*(yne-yse) - (y-yse)*(xne-xse)
426  l2 = (x-xne)*(ynw-yne) - (y-yne)*(xnw-xne)
427  l3 = (x-xnw)*(ysw-ynw) - (y-ynw)*(xsw-xnw)
428
429  p0 = sign(1., l0) ; if (l0 == 0.) p0=0.
430  p1 = sign(1., l1) ; if (l1 == 0.) p1=0.
431  p2 = sign(1., l2) ; if (l2 == 0.) p2=0.
432  p3 = sign(1., l3) ; if (l3 == 0.) p3=0.
433
434  if ( (abs(p0)+abs(p2)) + (abs(p1)+abs(p3)) == abs((p0+p2) + (p1+p3)) ) then
435  ispointincell=.true.
436  endif
mom_grid::ocean_grid_type
Ocean grid type. See mom_grid for details.
Definition: MOM_grid.F90:19

◆ mom_grid_end()

subroutine, public mom_grid::mom_grid_end ( type(ocean_grid_type), intent(inout)  G)

Release memory used by the ocean_grid_type and related structures.

Parameters
[in,out]gThe horizontal grid type

Definition at line 521 of file MOM_grid.F90.

Referenced by mom::initialize_mom().

521  type(ocean_grid_type), intent(inout) :: g !< The horizontal grid type
522
523  dealloc_(g%dxT) ; dealloc_(g%dxCu) ; dealloc_(g%dxCv) ; dealloc_(g%dxBu)
524  dealloc_(g%IdxT) ; dealloc_(g%IdxCu) ; dealloc_(g%IdxCv) ; dealloc_(g%IdxBu)
525
526  dealloc_(g%dyT) ; dealloc_(g%dyCu) ; dealloc_(g%dyCv) ; dealloc_(g%dyBu)
527  dealloc_(g%IdyT) ; dealloc_(g%IdyCu) ; dealloc_(g%IdyCv) ; dealloc_(g%IdyBu)
528
529  dealloc_(g%areaT) ; dealloc_(g%IareaT)
530  dealloc_(g%areaBu) ; dealloc_(g%IareaBu)
531  dealloc_(g%areaCu) ; dealloc_(g%IareaCu)
532  dealloc_(g%areaCv) ; dealloc_(g%IareaCv)
533
534  dealloc_(g%mask2dT) ; dealloc_(g%mask2dCu)
535  dealloc_(g%mask2dCv) ; dealloc_(g%mask2dBu)
536
537  dealloc_(g%geoLatT) ; dealloc_(g%geoLatCu)
538  dealloc_(g%geoLatCv) ; dealloc_(g%geoLatBu)
539  dealloc_(g%geoLonT) ; dealloc_(g%geoLonCu)
540  dealloc_(g%geoLonCv) ; dealloc_(g%geoLonBu)
541
542  dealloc_(g%dx_Cv) ; dealloc_(g%dy_Cu)
543  dealloc_(g%dx_Cv_obc) ; dealloc_(g%dy_Cu_obc)
544
545  dealloc_(g%bathyT) ; dealloc_(g%CoriolisBu)
546  dealloc_(g%dF_dx) ; dealloc_(g%dF_dy)
547  dealloc_(g%sin_rot) ; dealloc_(g%cos_rot)
548
549  if (g%bathymetry_at_vel) then
550  dealloc_(g%Dblock_u) ; dealloc_(g%Dopen_u)
551  dealloc_(g%Dblock_v) ; dealloc_(g%Dopen_v)
552  endif
553
554  deallocate(g%gridLonT) ; deallocate(g%gridLatT)
555  deallocate(g%gridLonB) ; deallocate(g%gridLatB)
556
557  deallocate(g%Domain%mpp_domain)
558  deallocate(g%Domain)
559
mom_grid::ocean_grid_type
Ocean grid type. See mom_grid for details.
Definition: MOM_grid.F90:19
Here is the caller graph for this function:

◆ mom_grid_init()

subroutine, public mom_grid::mom_grid_init ( type(ocean_grid_type), intent(inout)  G,
type(param_file_type), intent(in)  param_file,
type(hor_index_type), intent(in), optional  HI,
logical, intent(in), optional  global_indexing,
logical, intent(in), optional  bathymetry_at_vel
)

MOM_grid_init initializes the ocean grid array sizes and grid memory.

Parameters
[in,out]gThe horizontal grid type
[in]param_fileParameter file handle
[in]hiA hor_index_type for array extents
[in]global_indexingIf true use global index values instead of having the data domain on each processor start at 1.
[in]bathymetry_at_velIf true, there are separate values for the ocean bottom depths at velocity points. Otherwise the effects of topography are entirely determined from thickness points.

Definition at line 176 of file MOM_grid.F90.

References allocate_metrics(), mom_domains::get_domain_extent(), mom_hor_index::hor_index_init(), mom_error_handler::mom_error(), and mom_error_handler::mom_mesg().

Referenced by mom::initialize_mom().

176  type(ocean_grid_type), intent(inout) :: g !< The horizontal grid type
177  type(param_file_type), intent(in) :: param_file !< Parameter file handle
178  type(hor_index_type), &
179  optional, intent(in) :: hi !< A hor_index_type for array extents
180  logical, optional, intent(in) :: global_indexing !< If true use global index
181  !! values instead of having the data domain on each
182  !! processor start at 1.
183  logical, optional, intent(in) :: bathymetry_at_vel !< If true, there are
184  !! separate values for the ocean bottom depths at
185  !! velocity points. Otherwise the effects of topography
186  !! are entirely determined from thickness points.
187
188 ! This include declares and sets the variable "version".
189 #include "version_variable.h"
190  integer :: isd, ied, jsd, jed, nk
191  integer :: isdb, iedb, jsdb, jedb
192  integer :: ied_max, jed_max
193  integer :: niblock, njblock, nihalo, njhalo, nblocks, n, i, j
194  logical :: local_indexing ! If false use global index values instead of having
195  ! the data domain on each processor start at 1.
196
197  integer, allocatable, dimension(:) :: ibegin, iend, jbegin, jend
198  character(len=40) :: mod_nm = "MOM_grid" ! This module's name.
199
200
201  ! Read all relevant parameters and write them to the model log.
202  call log_version(param_file, mod_nm, version, &
203  "Parameters providing information about the lateral grid.")
204
205
206  call get_param(param_file, mod_nm, "NIBLOCK", niblock, "The number of blocks "// &
207  "in the x-direction on each processor (for openmp).", default=1, &
208  layoutparam=.true.)
209  call get_param(param_file, mod_nm, "NJBLOCK", njblock, "The number of blocks "// &
210  "in the y-direction on each processor (for openmp).", default=1, &
211  layoutparam=.true.)
212
213  if (present(hi)) then
214  g%HI = hi
215
216  g%isc = hi%isc ; g%iec = hi%iec ; g%jsc = hi%jsc ; g%jec = hi%jec
217  g%isd = hi%isd ; g%ied = hi%ied ; g%jsd = hi%jsd ; g%jed = hi%jed
218  g%isg = hi%isg ; g%ieg = hi%ieg ; g%jsg = hi%jsg ; g%jeg = hi%jeg
219
220  g%IscB = hi%IscB ; g%IecB = hi%IecB ; g%JscB = hi%JscB ; g%JecB = hi%JecB
221  g%IsdB = hi%IsdB ; g%IedB = hi%IedB ; g%JsdB = hi%JsdB ; g%JedB = hi%JedB
222  g%IsgB = hi%IsgB ; g%IegB = hi%IegB ; g%JsgB = hi%JsgB ; g%JegB = hi%JegB
223
224  g%idg_offset = hi%idg_offset ; g%jdg_offset = hi%jdg_offset
225  g%isd_global = g%isd + hi%idg_offset ; g%jsd_global = g%jsd + hi%jdg_offset
226  g%symmetric = hi%symmetric
227  else
228  local_indexing = .true.
229  if (present(global_indexing)) local_indexing = .not.global_indexing
230  call hor_index_init(g%Domain, g%HI, param_file, &
231  local_indexing=local_indexing)
232
233  ! get_domain_extent ensures that domains start at 1 for compatibility between
234  ! static and dynamically allocated arrays, unless global_indexing is true.
235  call get_domain_extent(g%Domain, g%isc, g%iec, g%jsc, g%jec, &
236  g%isd, g%ied, g%jsd, g%jed, &
237  g%isg, g%ieg, g%jsg, g%jeg, &
238  g%idg_offset, g%jdg_offset, g%symmetric, &
239  local_indexing=local_indexing)
240  g%isd_global = g%isd+g%idg_offset ; g%jsd_global = g%jsd+g%jdg_offset
241  endif
242
243  g%nonblocking_updates = g%Domain%nonblocking_updates
244
245  ! Set array sizes for fields that are discretized at tracer cell boundaries.
246  g%IscB = g%isc ; g%JscB = g%jsc
247  g%IsdB = g%isd ; g%JsdB = g%jsd
248  g%IsgB = g%isg ; g%JsgB = g%jsg
249  if (g%symmetric) then
250  g%IscB = g%isc-1 ; g%JscB = g%jsc-1
251  g%IsdB = g%isd-1 ; g%JsdB = g%jsd-1
252  g%IsgB = g%isg-1 ; g%JsgB = g%jsg-1
253  endif
254  g%IecB = g%iec ; g%JecB = g%jec
255  g%IedB = g%ied ; g%JedB = g%jed
256  g%IegB = g%ieg ; g%JegB = g%jeg
257
258  call mom_mesg(" MOM_grid.F90, MOM_grid_init: allocating metrics", 5)
259
260  call allocate_metrics(g)
261
262  isd = g%isd ; ied = g%ied ; jsd = g%jsd ; jed = g%jed
263  isdb = g%IsdB ; iedb = g%IedB ; jsdb = g%JsdB ; jedb = g%JedB
264
265  g%bathymetry_at_vel = .false.
266  if (present(bathymetry_at_vel)) g%bathymetry_at_vel = bathymetry_at_vel
267  if (g%bathymetry_at_vel) then
268  alloc_(g%Dblock_u(isdb:iedb, jsd:jed)) ; g%Dblock_u(:,:) = 0.0
269  alloc_(g%Dopen_u(isdb:iedb, jsd:jed)) ; g%Dopen_u(:,:) = 0.0
270  alloc_(g%Dblock_v(isd:ied, jsdb:jedb)) ; g%Dblock_v(:,:) = 0.0
271  alloc_(g%Dopen_v(isd:ied, jsdb:jedb)) ; g%Dopen_v(:,:) = 0.0
272  endif
273
274 ! setup block indices.
275  nihalo = g%Domain%nihalo
276  njhalo = g%Domain%njhalo
277  nblocks = niblock * njblock
278  if (nblocks < 1) call mom_error(fatal, "MOM_grid_init: " // &
279  "nblocks(=NI_BLOCK*NJ_BLOCK) must be no less than 1")
280
281  allocate(ibegin(niblock), iend(niblock), jbegin(njblock), jend(njblock))
282  call compute_block_extent(g%HI%isc,g%HI%iec,niblock,ibegin,iend)
283  call compute_block_extent(g%HI%jsc,g%HI%jec,njblock,jbegin,jend)
284  !-- make sure the last block is the largest.
285  do i = 1, niblock-1
286  if (iend(i)-ibegin(i) > iend(niblock)-ibegin(niblock) ) call mom_error(fatal, &
287  "MOM_grid_init: the last block size in x-direction is not the largest")
288  enddo
289  do j = 1, njblock-1
290  if (jend(j)-jbegin(j) > jend(njblock)-jbegin(njblock) ) call mom_error(fatal, &
291  "MOM_grid_init: the last block size in y-direction is not the largest")
292  enddo
293
294  g%nblocks = nblocks
295  allocate(g%Block(nblocks))
296  ied_max = 1 ; jed_max = 1
297  do n = 1,nblocks
298  ! Copy all information from the array index type describing the local grid.
299  g%Block(n) = g%HI
300
301  i = mod((n-1), niblock) + 1
302  j = (n-1)/niblock + 1
303  !--- isd and jsd are always 1 for each block to permit array reuse.
304  g%Block(n)%isd = 1 ; g%Block(n)%jsd = 1
305  g%Block(n)%isc = g%Block(n)%isd+nihalo
306  g%Block(n)%jsc = g%Block(n)%jsd+njhalo
307  g%Block(n)%iec = g%Block(n)%isc + iend(i) - ibegin(i)
308  g%Block(n)%jec = g%Block(n)%jsc + jend(j) - jbegin(j)
309  g%Block(n)%ied = g%Block(n)%iec + nihalo
310  g%Block(n)%jed = g%Block(n)%jec + njhalo
311  g%Block(n)%IscB = g%Block(n)%isc; g%Block(n)%IecB = g%Block(n)%iec
312  g%Block(n)%JscB = g%Block(n)%jsc; g%Block(n)%JecB = g%Block(n)%jec
313  ! For symmetric memory domains, the first block will have the extra point
314  ! at the lower boundary of its computational domain.
315  if (g%symmetric) then
316  if (i==1) g%Block(n)%IscB = g%Block(n)%IscB-1
317  if (j==1) g%Block(n)%JscB = g%Block(n)%JscB-1
318  endif
319  g%Block(n)%IsdB = g%Block(n)%isd; g%Block(n)%IedB = g%Block(n)%ied
320  g%Block(n)%JsdB = g%Block(n)%jsd; g%Block(n)%JedB = g%Block(n)%jed
321  !--- For symmetric memory domain, every block will have an extra point
322  !--- at the lower boundary of its data domain.
323  if (g%symmetric) then
324  g%Block(n)%IsdB = g%Block(n)%IsdB-1
325  g%Block(n)%JsdB = g%Block(n)%JsdB-1
326  endif
327  g%Block(n)%idg_offset = (ibegin(i) - g%Block(n)%isc) + g%HI%idg_offset
328  g%Block(n)%jdg_offset = (jbegin(j) - g%Block(n)%jsc) + g%HI%jdg_offset
329  ! Find the largest values of ied and jed so that all blocks will have the
330  ! same size in memory.
331  ied_max = max(ied_max, g%Block(n)%ied)
332  jed_max = max(jed_max, g%Block(n)%jed)
333  enddo
334
335  ! Reset all of the data domain sizes to match the largest for array reuse,
336  ! recalling that all block have isd=jed=1 for array reuse.
337  do n = 1,nblocks
338  g%Block(n)%ied = ied_max ; g%Block(n)%IedB = ied_max
339  g%Block(n)%jed = jed_max ; g%Block(n)%JedB = jed_max
340  enddo
341
342  !-- do some bounds error checking
343  if ( g%block(nblocks)%ied+g%block(nblocks)%idg_offset > g%HI%ied + g%HI%idg_offset ) &
344  call mom_error(fatal, "MOM_grid_init: G%ied_bk > G%ied")
345  if ( g%block(nblocks)%jed+g%block(nblocks)%jdg_offset > g%HI%jed + g%HI%jdg_offset ) &
346  call mom_error(fatal, "MOM_grid_init: G%jed_bk > G%jed")
347
mom_grid::ocean_grid_type
Ocean grid type. See mom_grid for details.
Definition: MOM_grid.F90:19
Here is the call graph for this function:
Here is the caller graph for this function:

◆ set_derived_metrics()

subroutine, public mom_grid::set_derived_metrics ( type(ocean_grid_type), intent(inout)  G)

set_derived_metrics calculates metric terms that are derived from other metrics.

Parameters
[in,out]gThe horizontal grid structure

Definition at line 353 of file MOM_grid.F90.

References adcroft_reciprocal().

Referenced by mom_transcribe_grid::copy_dyngrid_to_mom_grid().

353  type(ocean_grid_type), intent(inout) :: g !< The horizontal grid structure
354 ! Various inverse grid spacings and derived areas are calculated within this
355 ! subroutine.
356  integer :: i, j, isd, ied, jsd, jed
357  integer :: isdb, iedb, jsdb, jedb
358
359  isd = g%isd ; ied = g%ied ; jsd = g%jsd ; jed = g%jed
360  isdb = g%IsdB ; iedb = g%IedB ; jsdb = g%JsdB ; jedb = g%JedB
361
362  do j=jsd,jed ; do i=isd,ied
363  if (g%dxT(i,j) < 0.0) g%dxT(i,j) = 0.0
364  if (g%dyT(i,j) < 0.0) g%dyT(i,j) = 0.0
365  g%IdxT(i,j) = adcroft_reciprocal(g%dxT(i,j))
366  g%IdyT(i,j) = adcroft_reciprocal(g%dyT(i,j))
367  g%IareaT(i,j) = adcroft_reciprocal(g%areaT(i,j))
368  enddo ; enddo
369
370  do j=jsd,jed ; do i=isdb,iedb
371  if (g%dxCu(i,j) < 0.0) g%dxCu(i,j) = 0.0
372  if (g%dyCu(i,j) < 0.0) g%dyCu(i,j) = 0.0
373  g%IdxCu(i,j) = adcroft_reciprocal(g%dxCu(i,j))
374  g%IdyCu(i,j) = adcroft_reciprocal(g%dyCu(i,j))
375  enddo ; enddo
376
377  do j=jsdb,jedb ; do i=isd,ied
378  if (g%dxCv(i,j) < 0.0) g%dxCv(i,j) = 0.0
379  if (g%dyCv(i,j) < 0.0) g%dyCv(i,j) = 0.0
380  g%IdxCv(i,j) = adcroft_reciprocal(g%dxCv(i,j))
381  g%IdyCv(i,j) = adcroft_reciprocal(g%dyCv(i,j))
382  enddo ; enddo
383
384  do j=jsdb,jedb ; do i=isdb,iedb
385  if (g%dxBu(i,j) < 0.0) g%dxBu(i,j) = 0.0
386  if (g%dyBu(i,j) < 0.0) g%dyBu(i,j) = 0.0
387
388  g%IdxBu(i,j) = adcroft_reciprocal(g%dxBu(i,j))
389  g%IdyBu(i,j) = adcroft_reciprocal(g%dyBu(i,j))
390  ! areaBu has usually been set to a positive area elsewhere.
391  if (g%areaBu(i,j) <= 0.0) g%areaBu(i,j) = g%dxBu(i,j) * g%dyBu(i,j)
392  g%IareaBu(i,j) = adcroft_reciprocal(g%areaBu(i,j))
393  enddo ; enddo
mom_grid::ocean_grid_type
Ocean grid type. See mom_grid for details.
Definition: MOM_grid.F90:19
Here is the call graph for this function:
Here is the caller graph for this function:

◆ set_first_direction()

subroutine, public mom_grid::set_first_direction ( type(ocean_grid_type), intent(inout)  G,
integer, intent(in)  y_first
)
Parameters
[in,out]gThe ocean's grid structure

Definition at line 440 of file MOM_grid.F90.

440  type(ocean_grid_type), intent(inout) :: g !< The ocean's grid structure
441  integer, intent(in) :: y_first
442
443  g%first_direction = y_first
mom_grid::ocean_grid_type
Ocean grid type. See mom_grid for details.
Definition: MOM_grid.F90:19
